How to configure APACHE server with Self Signed Certificate on CentOS/ Red Hat Linux / Fedora

We need to follow below steps to configure APACHE with Self Signed certificate

[root@opensourceeducation ~]# yum install mod_ssl openssl
Loaded plugins: fastestmirror
 Loading mirror speeds from cached hostfile
 * base: mirror.atlanticmetro.net
 * epel: mirrors.mit.edu
 * extras: centos.mirror.nac.net
 * updates: mirror.ash.fastserv.com
Setting up Install Process
Package openssl-1.0.1e-16.el6_5.14.x86_64 already installed and latest version
Resolving Dependencies
--> Running transaction check
---> Package mod_ssl.x86_64 1:2.2.15-30.el6.centos will be installed
--> Finished Dependency Resolution
Dependencies Resolved
==============================================================================================================Package Arch Version Repository Size
============================================================================================================== Installing:
 mod_ssl x86_64 1:2.2.15-30.el6.centos updates 91 k
Transaction Summary
==============================================================================================================Install 1 Package(s)\
Total download size: 91 k
Installed size: 183 k
Is this ok [y/N]: y
Downloading Packages:
mod_ssl-2.2.15-30.el6.centos.x86_64.rpm | 91 kB 00:00
Running rpm_check_debug
Running Transaction Test
Transaction Test Succeeded
Running Transaction
Installing : 1:mod_ssl-2.2.15-30.el6.centos.x86_64 1/1
Verifying : 1:mod_ssl-2.2.15-30.el6.centos.x86_64 1/1
Installed:
mod_ssl.x86_64 1:2.2.15-30.el6.centos
Complete!

To Generate self certificates please follow below commands and add your  information for your self singed certificate

[root@opensourceeducation ~]# openssl genrsa -out ca.key 2048
Generating RSA private key, 2048 bit long modulus
...................................+++
.........................................................................................+++
e is 65537 (0x10001)
[root@opensourceeducation ~]# openssl req -new -key ca.key -out ca.csr
You are about to be asked to enter information that will be incorporated into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank. -----
Country Name (2 letter code) [XX]:PK
State or Province Name (full name) []:ISB
Locality Name (eg, city) [Default City]:ISB
Organization Name (eg, company) [Default Company Ltd]:OSEN
Organizational Unit Name (eg, section) []:IT
Common Name (eg, your name or your server's hostname) []:OpenSourceEducation.net
Email Address []:babar@LinuxUrduCBT.com
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:pakistani
An optional company name []:
[root@opensourceeducation ~]# openssl x509 -req -days 365 -in ca.csr -signkey ca.key -out ca.crt
Signature ok
subject=/C=PK/ST=ISB/L=ISB/O=OSEN/OU=IT/CN=OpenSourceEducation.net/emailAddress=babar@LinuxUrduCBT.com
Getting Private key

Now Copy all certificates and keys to /etc/pki/tls/ folders

[root@opensourceeducation ~]# cp ca.crt /etc/pki/tls/certs
[root@opensourceeducation ~]# cp ca.key /etc/pki/tls/private/ca.key
[root@opensourceeducation ~]# cp ca.csr /etc/pki/tls/private/ca.csr

Now Run below command to correct SELinux Contexts

[root@opensourceeducation ~]# restorecon -RvF /etc/pki

Now Open SSL.conf file to configure the APACHE SSL and replace the certificate / key paths

[root@opensourceeducation ~]# vi +/SSLCertificateFile /etc/httpd/conf.d/ssl.conf
TransferLog logs/ssl_access_log
LogLevel warn
# SSL Engine Switch:
# Enable/Disable SSL for this virtual host.
SSLEngine on
# SSL Protocol support:
# List the enable protocol levels with which clients will be able to
# connect. Disable SSLv2 access by default:
SSLProtocol all -SSLv2
# SSL Cipher Suite:
# List the ciphers that the client is permitted to negotiate.
# See the mod_ssl documentation for a complete list.
SSLCipherSuite ALL:!ADH:!EXPORT:!SSLv2:RC4+RSA:+HIGH:+MEDIUM:+LOW
# Server Certificate:
# Point SSLCertificateFile at a PEM encoded certificate. If
# the certificate is encrypted, then you will be prompted for a
# pass phrase. Note that a kill -HUP will prompt again. A new
# certificate can be generated using the genkey(1) command.
###Please comment the below line and add the right path of the file below this line
#SSLCertificateFile /etc/pki/tls/certs/localhost.crt
SSLCertificateFile /etc/pki/tls/certs/ca.crt
# Server Private Key:
# If the key is not combined with the certificate, use this
# directive to point at the key file. Keep in mind that if
# you've both a RSA and a DSA private key you can configure
# both in parallel (to also allow the use of DSA ciphers, etc.)
###Please comment the below line,  add the right path of the files below this line and save the file using
#SSLCertificateKeyFile /etc/pki/tls/private/localhost.key
SSLCertificateKeyFile /etc/pki/tls/private/ca.key
# Server Certificate Chain:
# Point SSLCertificateChainFile at a file containing the
# concatenation of PEM encoded CA certificates which form the
# certificate chain for the server certificate. Alternatively
# the referenced file can be the same as SSLCertificateFile
# when the CA certificates are directly appended to the server
# certificate for convinience.
"/etc/httpd/conf.d/ssl.conf" 222L, 9568C written

Now Start or Restart the APACHE Server using below command

[root@opensourceeducation ~]# /etc/init.d/httpd restart
 Stopping httpd: [ OK ]
 Starting httpd: [ OK ]
 [root@opensourceeducation ~]#

After Apache configuration please add the 443 port into your IPtables firewall to accept incomming the connections

[root@opensourceeducation ~]# iptables -A INPUT -p tcp --dport 443 -j ACCEPT
[root@opensourceeducation ~]#service  iptables save

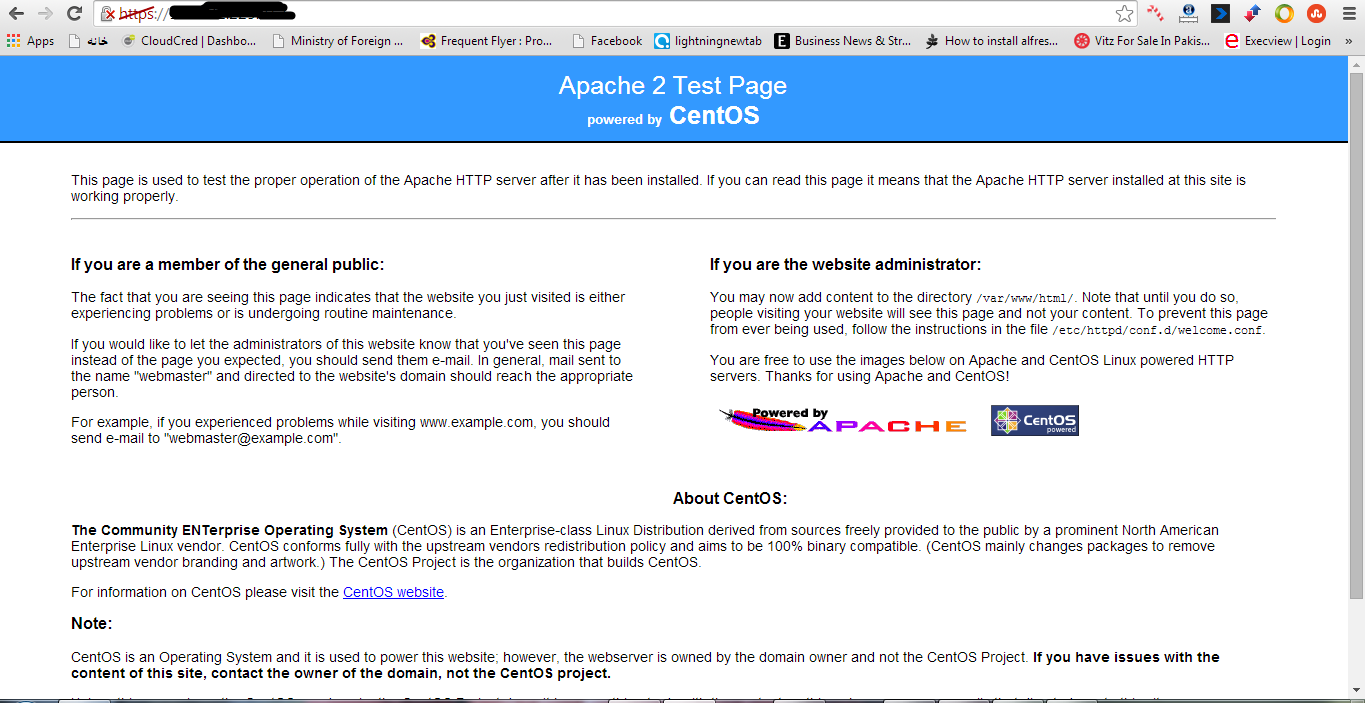

Now please open your browser to check the web site is working

https://your-server-ip

Now click on proceed anyway.

https-error

http://wiki.centos.org/HowTos/Https
